UN Big Bag
|
The UN issued recommendations on the transportation of dangerous goods. These define how strong an Big Bag for dangerous goods must be and set the standards how it has to be tested. The most European countries agreed to the European Agreement concerning the International Carriage of Dangerous Goods by Road (ADR) which adopts the UN Recommendations on the Transport of Dangerous Goods. |
|
 |
UN bag types

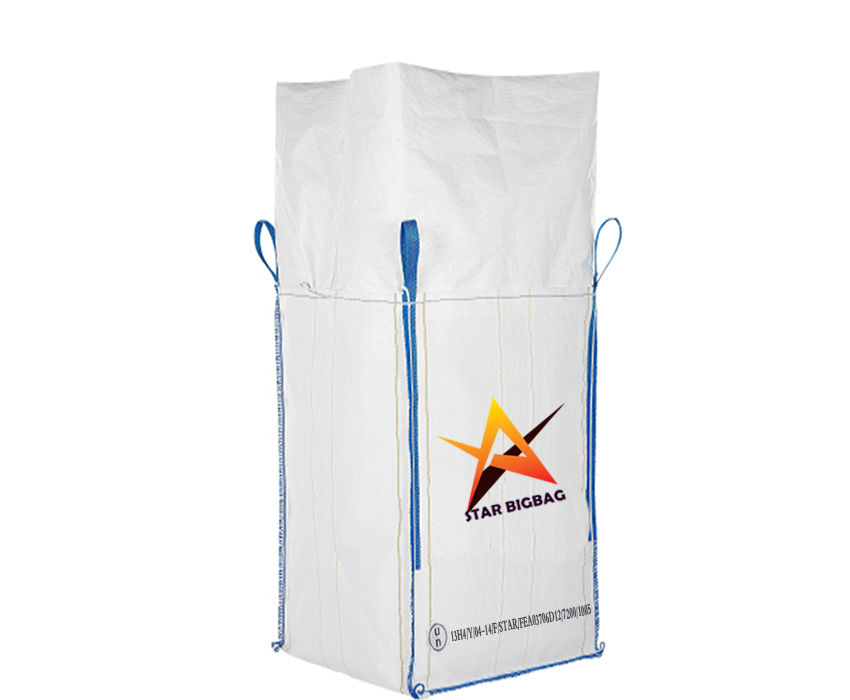

We supply UN bags for dangerous materials in various specifications. Compared to standard FIBC, UN big bags are extra strong constructed in order to prevent leakage of the dangerous materials even when the big bag is in a stressed situation. Every UN bag design is tested by an independent test house. The ADR certificates will be handed over to buyers.
|
Offered by Starco Big Bag
|
max. Volume
|
UN-Symbol
|
Packing Group
|
Degree of Danger
|
|
no (not possible for FIBC)
|
1.5m3
|
X
|
I
|
high
|
|
yes
|
3.0 m3
|
Y
|
II
|
medium
|
|
yes
|
3.0 m3
|
Z
|
III
|
low
|
In respect to UN recommendations, we perform the following 6 tests in our inhouse test laboratory to verify the quality of the said bigbags:
-
Top lift test
-
Drop test
-
Topple test
-
Righting test
-
Stacking test
-
Tear test
All approved bigbags have a valid UN certificate and the certificate info is marked visibly on each bigbag.
Construction
UN bags can be divided into four major types, which we can supply to you:
-
13H1 uncoated fabric and without inliner
-
13H2 coated fabric and without inliner
-
13H3 uncoated fabric and with inliner
-
13H4 coated fabric and with inliner
UN bags have some limitations regarding their design.
Size
UN bags must not be higher than twice the shortest side. They cannot have a larger volume than 3.0m3
Inlet
The big bag cannot have an open top or a simple flap closure.
